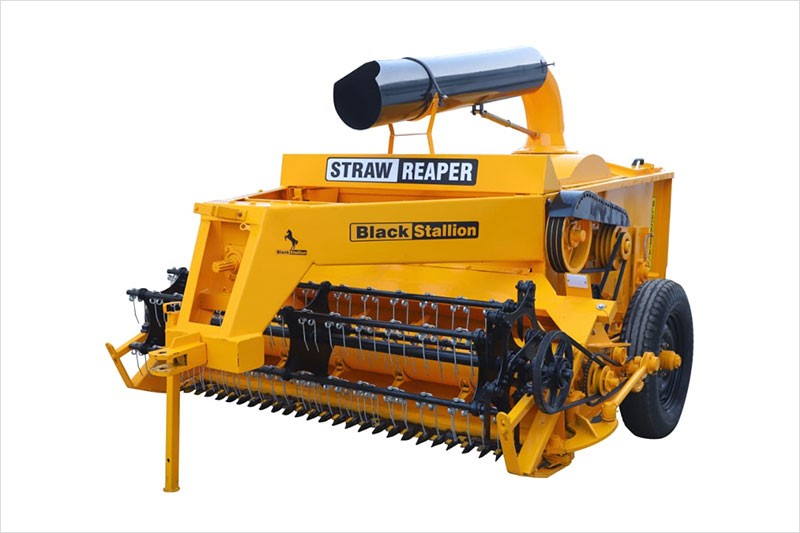

Straw Reaper is a chopper machine which cuts, threshers & clean the straw in one operation. The wheat stalks left after combine harvest are cut by an oscillating blades while revolving reel pushes them back toward and augar. The stalks are conveyed into the machine by the augar and guide drum, which reaches the threshing cylinder which cut the stalks into small pieces against concave.
It give superior separating performance. The short fragment (straw) fall through the bars of the concave. Double blower operating just behind rushes the straw to trolley attached and separate the dust particles.
Description | Black Stallion-Apollo |
---|---|
Main Drive | Gear Drive |
Tractor Power (hp) | 50 |
Cutter Bar Size | 7F |
Body Width (Inch) | 57 |
Working Width (mm) | 2075 |
Weight (Kg) | 1950 |
Thresher Dia (Inch) | 31 |
Thresher Blades | 288 |
No. of Blades in Basket | 48 |
Wheel Size | 7 x 19 |
No. of Blower | 2 |
Dimensions | |
Length (mm) | 3581 |
Width (mm) | 2362 |
Height (mm) | 2235 |
Note : Row To Row Spacing & Seed Rate Can Be Adjusted
